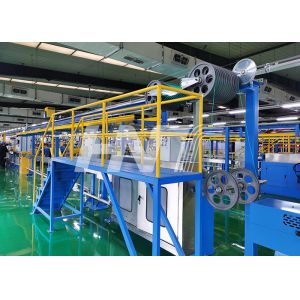

Horizontal Wire Accumulator For Extrusion Line

Product Categories

Wuxi Hengtai Cable Machinery Manufacture Co., Ltd

Contact Now

Place of Origin : Wuxi

Brand Name : HNT

Certification : ISO9001:2008, CE, High-tech enterprise

MOQ : 1 set

Price : negotiable

Packaging Details : according to customer's requirements

Delivery Time : 30-120 days

Payment Terms : T/T, L/C

wheel diameter : 300/400mm

conductor diameter : Max. 1000mm

Accumulator Length : 120m

Line Speed : Max. 1000 m/min

Machine Length : 12M

Moving wheels : 4

Contact Now

12M Horizontal Accumulator:

Application: for the extrusion non-stop production or rewinding line;
Length: horizontal 12 meters;
Stretching force: 2.2KW variable frequency AC motor;
Applicable wire diameter: φ0.9-φ15mm;
Tension form: 20KG magnetic powder clutch;
Range of tension: ≤1400N;
Wire Storage length: 200m;
Guide wheel: diameter 300/400mm, material is alloy aluminum, surface anodized hardening, the number of wheels is 10+11 wheels;
Anti-collision: compression spring;
Safety device: limit contact detection, disconnection and shutdown;
Tension output form: detected from the encoder, the tension changes linearly according to the change of the position of the storage line.

Horizontal Wire Accumulator For Extrusion Line
